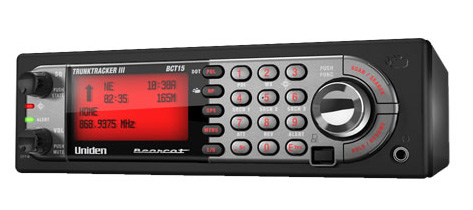

- BCT
15 X
- Alpha
Text Display
- 9,000
Channel Programmable Base / Mobile Scanning Radio
-
- Manufacturer's
Suggested Retail: $319.95
- Your
Price Only: $259.88!
-
- Your credit cards and
checks are welcome!
- This
Scanner Has an "Alpha
Text Display" So You
Can Enter The Actual Words &
Letters To Make It Really Easy To
Identify The Channel & Who's Talking!
- There
Is Also The Standard Numeric Frequency Display As
Well!
-
- Product
Features
-
-
- TrunkTracker III Technology
- So you can keep up with the action on Motorola,
EDACS and LTR systems.
- 9000 Dynamically Allocated
Channels
- Close Call® RF Capture
Technology - Instantly tunes to signals from
nearby transmitters
- Location-Based Scanning
- Fire Tone-Out
- Alpha Tagging
- 100 Quick Key System Access
- Band Scope -
Graphically finds radio activity
- Continuous Band Coverage*
- 25MHz to 1.3GHz Excluding UHF TV and Cellular
- Temporary Lockout
- Search with Scan
- DCS/CTCSS Rapid Decode
- Instantly Detects and Displays the Subaudible
Tone So You Can Quickly Determine the System
Settings.
- S.A.M.E. Weather Alert
- Specific Area Message Encoding - During a NOAA
Weather or Emergency Alert, a code for your
specific location will alert you to severe
conditions in your immediate area.
- PC Programming/Control
- Public Safety Scanner
- System / Channel Number
Tagging - provides rapid access to a specific
system or channel
- Compatible with BC-RH96
Remote Head
- Individual Channel Volume
Offset
- Priority ID Scan on trunked
systems
-
- Specifications
-
-
-
- Attenuation
|
- 20dB nominal
|
- Audio
Output Power
|
- 3W nominal into 8O
speaker
|
- 30mW nominal into 32O
stereo headphone
|
- Scan
Rate
|
- 100 channels per
second max (Conventional mode)
|
- Search
Rate
|
- 300 steps per second
max (5kHz steps only)
|
- External
Jacks
|
- Antenna Jack: BNC Type
|
- Phone Jack: 3.5mm (1/8
in.) Stereo Type
|
- Ext.SP Jack: 3.5mm
(1/8 in.) Monaural Type
|
- REC.Out Jack: 3.5mm
(1/8 in.) Stereo Type
|
- Ext. DC Power and
Orange Wire Jack 3 pin (Center Orange
Wire)
|
- DC Power Jack: 5.5mm
(1/5 in.) (Center Positive)
|
- GPS/Remote Interface
Jack: D Sub 9pin Male Type
|
- Remote Interfase Jack
(front panel): 4-pin Mini Custom Type
|
- Internal
Speaker
|
- 8.0O 5.0W Max. 77mm
(3.0 in.)
|
- Power
Requirements
|
- DC:11V to 16.6V(Ext.DC
Power Jack or DC Power Jack)
|
- AC Adapter (13.8V DC
750mA Regulated) (AD-1009)
|
- Operating
Temperature
|
- Nominal: -20°C to
+60°C -4°F to +140°F
|
- Close Call: -10°C to
+60°C +14°F to +140°F
|
- Size
|
- 7.2 in.(W) x 5.9
in.(D) x 2.2 in.(H)
|
- Weight
|
- 3.42 lbs
|
- Remote
Functions
|
- Direct PC control
|
- Database management
|
- Wired cloning
|
- Display
|
- 64 x 128 Full Dot
Matrix LCD with Orange-color back light
|
|
|
-
- Sensitivity
(nominal) 12dB SINAD
|
|
-
- 0.4µV
|
- 25-27.995 MHz
|
- AM
|
- 0.3µV
|
- 28-53.98 MHz
|
- NFM
|
- 0.6µV
|
- 54-71.95 MHz
|
- WFM
|
- 0.2µV
|
- 72-75.995 MHz
|
- FM
|
- 0.5µV
|
- 76-107.9 MHz
|
- FMB
|
- 0.3µV
|
- 108-136.9916 MHz
|
- AM
|
- 0.3µV
|
- 137-173.9875 MHz
|
- NFM
|
- 0.5µV
|
- 174-215.95 MHz
|
- WFM
|
- 0.3µV
|
- 216-224.98 MHz
|
- NFM
|
- 0.3µV
|
- 225-379.975 MHz
|
- AM
|
- 0.3µV
|
- 380-512 MHz
|
- NFM
|
- 0.3µV
|
- 758-960 MHz
|
- NFM
|
- 0.4µV
|
- 1240-1300 MHz
|
- NFM
|
|
|
-
- Signal
Noise Ratio (nominal)
|
|
-
- 48dB
|
- 25-27.995 MHz
|
- AM
|
- 41dB
|
- 28-53.98 MHz
|
- NFM
|
- 54dB
|
- 54-71.95 MHz
|
- WFM
|
- 48dB
|
- 72-75.995 MHz
|
- FM
|
- 60dB
|
- 76-107.9 MHz
|
- FMB
|
- 50dB
|
- 108-136.9916 MHz
|
- AM
|
- 41dB
|
- 137-173.9875 MHz
|
- NFM
|
- 54dB
|
- 174-215.95 MHz
|
- WFM
|
- 41dB
|
- 216-224.98 MHz
|
- NFM
|
- 50dB
|
- 225-379.975 MHz
|
- AM
|
- 40dB
|
- 380-512 MHz
|
- NFM
|
- 41dB
|
- 758-960 MHz
|
- NFM
|
- 37dB
|
- 1240-1300 MHz
|
- NFM
|
|
|
-
- Close
Call Sensitivity (nominal)
|
|
-
- 160µV
|
- VHF Low1 Band
|
- 110µV
|
- VHF Low2 Band
|
- 90µV
|
- Air Band
|
- 90µV
|
- VHF High1 Band
|
- 100µV
|
- VHF High2 Band
|
- 110µV
|
- UHF Band
|
- 160µV
|
- 800MHz+ Band
|
|
|
-
- Frequency
Range (MHz)
|
- Modulation
|
- Step
(kHz)
|
- Name
|
|
-
- 25.0000-26.9600
|
- AM
|
- 5
|
- Petroleum Products
& Broadcast Pickup
|
- 26.9650-27.4050
|
- AM
|
- 5
|
- CB Class D Channel
|
- 27.4100-27.9950
|
- AM
|
- 5
|
- Business & Forest
Products
|
- 28.0000-29.6800
|
- NFM
|
- 20
|
- 10 Meter Amateur Band
|
- 29.7000-49.9900
|
- NFM
|
- 10
|
- VHF Low Band
|
- 50.0000-53.9800
|
- NFM
|
- 20
|
- 6 Meter Amateur Band
|
- 54.0000-71.9500
|
- WFM
|
- 50
|
- VHF TV
|
- 72.0000-75.9950
|
- FM
|
- 5
|
- Intersystem &
Astronomy
|
- 76.0000-87.9500
|
- WFM
|
- 50
|
- VHF TV
|
- 88.0000-107.9000
|
- FMB
|
- 100
|
- FM Broadcast
|
- 108.0000-136.9916
|
- AM
|
- 8.33
|
- Aircraft Band
|
- 137.0000-143.9875
|
- NFM
|
- 12.5
|
- Military Land Mobile
|
- 144.0000-147.9950
|
- NFM
|
- 5
|
- 2 Meter Amateur Band
|
- 148.0000-150.7875
|
- NFM
|
- 12.5
|
- Military Land Mobile
|
- 150.8000-161.9950
|
- NFM
|
- 5
|
- VHF High Band
|
- 162.0000-173.9875
|
- NFM
|
- 12.5
|
- Federal Government
|
- 174.0000-215.9500
|
- WFM
|
- 50
|
- VHF TV
|
- 216.0000-224.9800
|
- NFM
|
- 20
|
- 1.25 Meter Amateur
Band
|
- 225.0000-379.9750
|
- AM
|
- 25
|
- Military Aircraft Band
|
- 380.0000-399.9875
|
- NFM
|
- 12.5
|
- Military Land Mobile
|
- 400.0000-405.9875
|
- NFM
|
- 12.5
|
- Miscellaneous
|
- 406.0000-419.9875
|
- NFM
|
- 12.5
|
- Federal Government
Land Mobile
|
- 420.0000-449.9875
|
- NFM
|
- 12.5
|
- 70 cm Amateur Band
|
- 450.0000-469.9875
|
- NFM
|
- 12.5
|
- UHF Standard Band
|
- 470.0000-512.0000
|
- NFM
|
- 12.5
|
- UHF TV
|
- 758.0000-787.99375
|
- NFM
|
- 6.25
|
- Public Service Band
|
- 788.0000-805.99375
|
- NFM
|
- 6.25
|
- Public Service Band
|
- 806.0000-823.9875
|
- NFM
|
- 12.5
|
- Public Service Band
|
- 849.0125-868.9875
|
- NFM
|
- 12.5
|
- Public Service Band
|
- 894.0125-960.0000
|
- NFM
|
- 12.5
|
- Public Service Band
|
- 1240.0000-1300.0000
|
- NFM
|
- 25
|
- 25 cm Amateur Band
|
|
|
- Frequency Span 0.2 MHz
To 500 MHz
- Frequency Step 5 kHz
To 100 kHz
- 250.0-3500.0Hz , 0.1Hz
Step Programmable
- 1050 Hz Tone System
- NWR-SAME System
(Warning / Watch / Advisory)
- Supported trunking systems
- Motorola Systems: Type
I, II, II/I (hybrid)
- EDACS Systems: FM,
NFM, and SCAT
- LTR Systems
- Dynamic memory allocation capacity
- Systems: 500 max
- Groups: 20 per system
- Site: 1000 max (All)
256 per system
- Channels: 9000 max
(21120 memory blocks)
- Channels per Trunked
System: 500 max
- 1st IF: 380.7 to 380.8
MHz / 265.5 to 265.6 MHz
- 2nd IF: 10.8 MHz
- 3rd IF: 450 kHz
-
- CTCSS
Tone Frequencies - 50 frequencies total
(Hz)
|
|
-
- 67.0
|
- 69.3
|
- 71.9
|
- 74.4
|
- 77.0
|
- 79.7
|
- 82.5
|
- 85.4
|
- 88.5
|
- 91.5
|
- 94.8
|
- 97.4
|
- 100.0
|
- 103.5
|
- 107.2
|
- 110.9
|
- 114.8
|
- 118.8
|
- 123.0
|
- 127.3
|
- 131.8
|
- 136.5
|
- 141.3
|
- 146.2
|
- 151.4
|
- 156.7
|
- 159.8
|
- 162.2
|
- 165.5
|
- 167.9
|
- 171.3
|
- 173.8
|
- 177.3
|
- 179.9
|
- 183.5
|
- 186.2
|
- 189.9
|
- 192.8
|
- 196.6
|
- 199.5
|
- 203.5
|
- 206.5
|
- 210.7
|
- 218.1
|
- 225.7
|
- 229.1
|
- 233.6
|
- 241.8
|
- 250.3
|
- 254.1
|
|
|
-
- DCS
Tone Codes - 104 codes total
|
|
-
- 023
|
- 025
|
- 026
|
- 031
|
- 032
|
- 036
|
- 043
|
- 047
|
- 051
|
- 053
|
- 054
|
- 065
|
- 071
|
- 072
|
- 073
|
- 074
|
- 114
|
- 115
|
- 116
|
- 122
|
- 125
|
- 131
|
- 132
|
- 134
|
- 143
|
- 145
|
- 152
|
- 155
|
- 156
|
- 162
|
- 165
|
- 172
|
- 174
|
- 205
|
- 212
|
- 223
|
- 225
|
- 226
|
- 243
|
- 244
|
- 245
|
- 246
|
- 251
|
- 252
|
- 255
|
- 261
|
- 263
|
- 265
|
- 266
|
- 271
|
- 274
|
- 306
|
- 311
|
- 315
|
- 325
|
- 331
|
- 332
|
- 343
|
- 346
|
- 351
|
- 356
|
- 364
|
- 365
|
- 371
|
- 411
|
- 412
|
- 413
|
- 423
|
- 431
|
- 432
|
- 445
|
- 446
|
- 452
|
- 454
|
- 455
|
- 462
|
- 464
|
- 465
|
- 466
|
- 503
|
- 506
|
- 516
|
- 523
|
- 526
|
- 532
|
- 546
|
- 565
|
- 606
|
- 612
|
- 624
|
- 627
|
- 631
|
- 632
|
- 654
|
- 662
|
- 664
|
- 703
|
- 712
|
- 723
|
- 731
|
- 732
|
- 734
|
- 743
|
- 754
|
|
|
-
-
-
-
-
-
-
-
-
-
|
