- CB
Radio
-
-

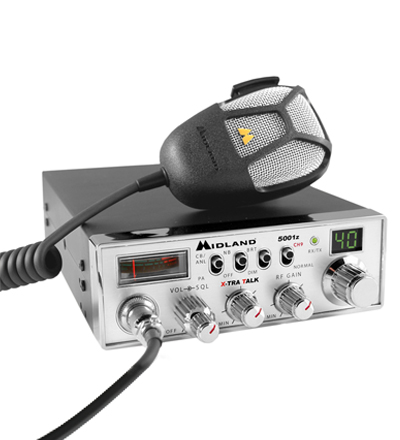

- MIDLAND
5001Z
- 11
Meter AM CB Radio
- Manufacturer's
Suggested Retail: $109.95
- Your
Price Only: $79.88!
-
- Your credit cards and
checks are welcome!
-
- You will come to know
that Midland power is more than
- just a slogan, but
the heading of long list of hearable, seeable
benefits. As
- your Midland CB
experience unfolds and grows we hope you will
remember
- that CB is only one
kind of electronic excellence available under the
Midland
- name.
- This unit
incorporates microprocessor controlled PLL
circuitry for precise
- tuning.
-
- FEATURES
- • 40 CB Channels
- • 4 Watt Output Power
- • X-TRA TALK Mic
Gain
- • 4- Pin Front Panel Mic
Connector
- • PA Function
- • Switchable Noise
Blanker(NB)
- • Instant Channel 9
- • Dimmer Control
- • RF Gain
- • Automatic Noise
Limiter(ANL)
- • Push to talk
ergonomically designed microphone
- • 9 ft coil Mic cord
- • Includes mounting
bracket/hardware and fused DC power cord
-
- Technical
Specifications
-
- GENERAL
- Frequency Range
...........................................................26.965-27.405
MHz
- Frequency
Control..........................................................Phase
Lock Loop (PLL)
- Channels
......................................................................40
- Modulation Type
...........................................................AM
- Antenna Connector
.......................................................SO-239
- PA Speaker
...................................................................8-Ohm,
5 Watts
- Microphone
...................................................................Electret
- Power Supply
...............................................................13.8
VDC
- Size
……….......................10.25"(D)
x 2.12"(H) x 6.25"(W)
- Unit
Weight………………………………………………………………..3
lbs.
- RECEIVER
- Sensitivity......................................................................0.7
uV for 10dB s/n
- Selectivity
.....................................................................45
dB + 10 kHz
- Squelch Range
...............................................................Adjustable
less than 1 uV
- Audio Output Power
......................................................4
Watts
- Distortion at 1000 mV
...................................................3%
- Audio Frequency Response
............................................400-2400
Hz
- Intermediate Frequency
................................................I°
10.695 MHz II° 455 kHz
- Spurious Response
........................................................more
than 45 dB
- TRANSMITTER
- RF Output Power
..........................................................4
Watts
- Frequency Tolerance
.....................................................0.005%
- Harmonic Suppression
...................................................More
than 60 dB
- Modulation
...................................................................AM
90%( ± 5%)
-
