Mobile CB Radio

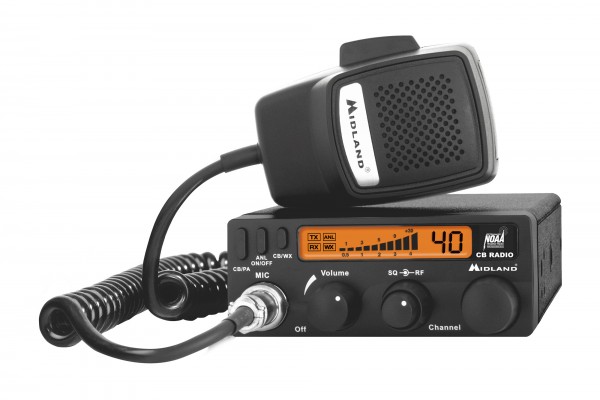

MIDLAND 1001LWX
11 Meter AM CB Radio with NOAA Weather
Manufacturer's Suggested Retail: $89.95
Your Price Only: $69.88!
Quantity
Your credit cards and checks are welcome!

You will come to know that Midland power is more than
just a slogan, but the heading of long list of hearable, seeable benefits. As
your Midland CB experience unfolds and grows we hope you will remember
that CB is only one kind of electronic excellence available under the Midland
name.
This unit incorporates microprocessor controlled PLL circuitry for precise
tuning.

FEATURES
  • 40-Channel Digital Tuner - Locks accurately onto your selected channel
  • Large, Backlit LCD - Multifunction display that is easy to read day or night
  • Weather Scan Technology - Automatically scans and locks on the strongest signal from the National Weather Service to bring you important weather information as you travel
  • 4-Watt Output Power - Delivers maximum communication range
  • RF Gain Control - Adjusts reception sensitivity (range) for clear reception
  • Digital Power Meter - Shows incoming signal strength and transmit power
  • Automatic Noise Limiter - Improves reception for a weak received signal
  • PA Function - Toggles easily between public address and normal CB operation
  • Compact Design - Installs easily into most cars, trucks and RV's
  • Squelch Control - Eliminates unwanted background noise
  • Locking Microphone Connector - Easy to connect microphone locks securely to your CB
  • External Speaker Jacks
  • Full Sized Microphone

TECHNICAL SPECIFICATIONS
GENERAL

Frequency range ................................................................................26.965-27.405 MHz
Channels ....................................................................................................................40
Modulation type .........................................................................................................AM
Antenna impedance ............................................................................................50 Ohm
Loudspeaker .........................................................................................................8 Ohm
Microphone ........................................................................................1000 ohm..Electret
Power Supply ...........................................................................13.8 VDC negative ground
Size …………………………………………………….......................4-7/8"(W) x 6-1/2"(D) x 1-1/2"(H)
Unit Weight……………………………………………………………………..............................1 lb. 10 oz.
CB Receiver (26.965-27.405 MHz-)
Sensitivity at 10dB S/N...........................................................................................0.8 uV
Selectivity ...............................................................................................45 dB + 10 kHz
Squelch range .........................................................................................0.8 uV-1000 uV
Audio output power ......................................................3.0 W @ 8 Ohm ( 10% distortion)
Distortion at 1000 mV ................................................................................................3%
Audio frequency response ............................................................................400-2400 Hz
Intermediate frequency ...........................................................I ° 10.7 MHz II ° 455 kHz
Spurious response .................................................................................more than 40 dB
Transmitter
RF Output Power ...................................................................................................4.0 W
Frequency Tolerance ...........................................................................................0.005%
Harmonic Suppression ............................................................................More than 60 dB
Modulation ...........................................................................................AM 90% ( ± 5%)
Weather Receiver (162.400-162.550 MHz)
Sensitivity at 12dB S/N...........................................................................................0.4 uV
Spurious response .................................................................................more than 40 dB
Channel Frequency
Channel 1 162. 400
Channel 2 162. 425
Channel 3 162. 450
Channel 4 162. 475
Channel 5 162. 500
Channel 6 162. 525
Channel 7 162. 550
